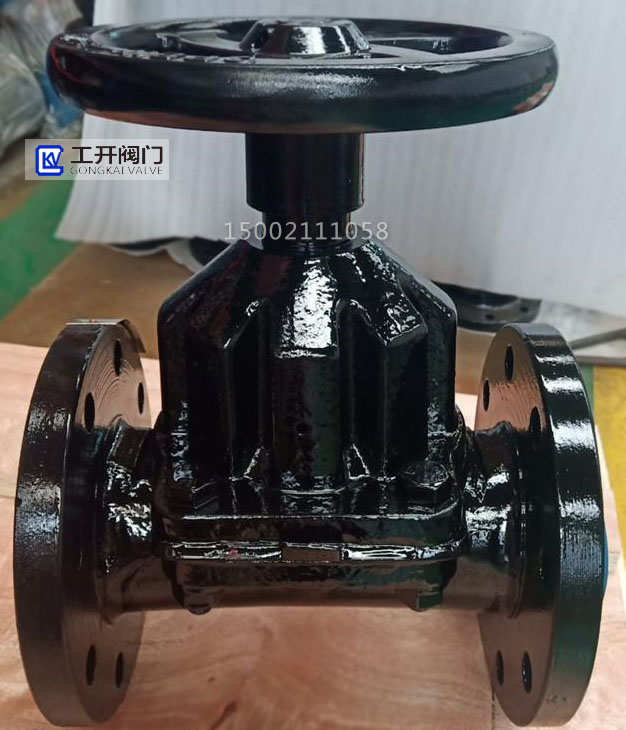

EG41J/F46 Manual British standard diaphragm valve

Update: 2024/7/24??????View:
  • Brand: ???GONGKAI
  • Type: ???EG41J、EG41F46
  • Order Online
Introduction

EG41J、EG41F46 British standard lined rubber diaphragm valve is designed for controlling non corrosive or generally corrosive media. The surface of the valve body cavity is unlined or covered with various rubber options, suitable for different working temperatures and fluid pipelines. The opening and closing of the rubber lined diaphragm valve is achieved by rotating the handwheel.
This valve is marked with a visible display color on the upper end of the valve cover to indicate the opening and closing position of the valve, indicating the opening and closing stroke of the valve. When the handwheel is placed clockwise, it moves down and the valve disc drives the diaphragm to descend, cutting off the passage; On the contrary, the valve will open and the color will be revealed.

Applicable medium:
Except for strong oxidants such as chromic acid, concentrated acid, hydrogen peroxide, and organic solvents, 50% fluorosilicic acid, 30%, 50%, 85% phosphoric acid, alkali, salt, metal plating solution, sodium hydroxide, potassium hydroxide, neutral salt solution, 10% sodium hydroxide, wet, most alcohols, organic acids and aldehydes, cement, lime slurry, vegetable oil, elemental gases, ethers, ketones, esters, desalinated water, purified water and other media;

Applicable temperature: ≤ 85 ℃, ≤ 100 ℃, ≤ 120 ℃, ≤ 150 ℃ (according to lining and diaphragm materials)

EG41J/F46 Manual British standard diaphragm valve main component materials

Part Materials
Body WCB,304
Bonnet Carbon steel, stainless steel
Lining Unlined,fluoroplastics
Diaphragm Fluoroplastics
Valve petal Stainless steel
Stem 304,45#


Handwheel Cast steel

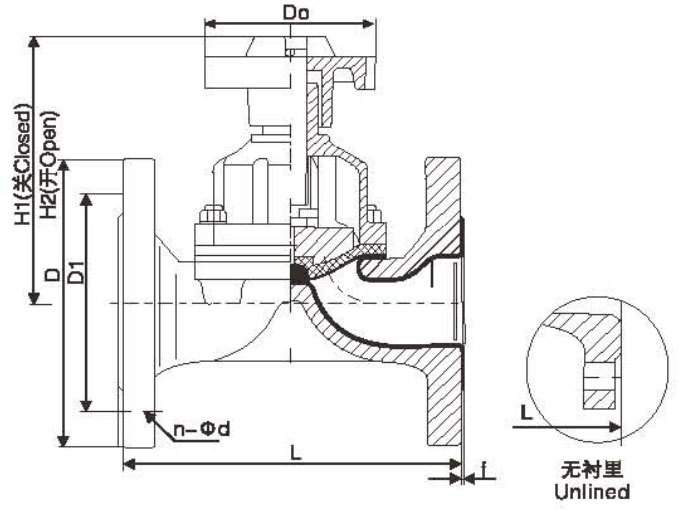

EG41J/F46 Manual British standard diaphragm valve main shape and connection dimensions

EG41J、EG41F46

Nominal diameter Nominal pressure Working pressure L D D1 n - φd F H1 H2 D0 Weight

(kg)

DN Mpa Mpa (mm)  (mm)  (mm)  (mm)  (mm)  (mm)  (mm)  (mm)
15 1.6 1. 0 108 95 65 4--14 2 90 99 66 2
20 117 105 75 4--14 2 93 103 66 3
25 127 115 85 4--14 2 100 112 66 4
32 146 140 100 4--18 2 127 144 96 6.5
40 159 150 110 4--18 2 136 156 96 7.5
50 190 165 125 4--18 2 151 177 118 10
65 1.0 216 185 145 4--18 2 183 213 165 16
80 254 200 160 4--18 2 198 273 230 23.5
100 305 220 180 8--18 2 266 320 280 34
125 356 250 210 8--18 3 319 386 280 44
150 406 285 240 8--22 3 380 453 368 67.5
200 1.0 0.6 521 340 295 8--22 3 506 626 400 141.5
250 635 395 350 12--22 5 598 734 500 229
300 0.4 749 445 400 12--22 5 698 778 560 321
350 787 505 460 16--22 5 723 883 560 360
400 0.25 914 565 515 16--26 5 868 1078 640 584
